Rockwell Hardness Test and the Effect of Treatment on Steel

There are several common methods to measure hardness, which include Brinell (H_B), Vickers (V), Knoop (K), and Shore hardness tests. Each of these methods utilizes a penetrator, either in the shape of a sphere (Brinell), cone (Rockwell), or diamond pyramid (Vickers, Knoop, and Rockwell), to make an indentation into the surface of a metal, which is then measured optically or by direct reading. The Shore hardness test usually measures the penetration into the surface of plastics or other polymers. The Brinell hardness test was the first hardness test introduced and is a robust method for high-test loads utilizing rudimentary instrumentation. Vickers hardness tests are beneficial when one needs to looks at hardness over a large range of values, as it can measure from the lowest to highest recorded hardness. Knoop hardness tests are valuable for applications with very small or thin samples. Nevertheless, the Rockwell hardness test is the most popular, as it is vastly more quick and inexpensive, as well as being the only hardness test where one can directly read the hardness without the aid of an optical tool.

For this study, we will focus on the Rockwell hardness test, as it is defined in ASTM E-18. The typical Rockwell tester is shown in Fig. 1 and consists of a readout and a lever system to apply the loads, which is hidden to the viewer. Manual and automated versions of these machines are commonly available in testing laboratories.

Figure 1: Rockwell Testing Machine.

The harder the material, the less penetration depth, thus the corresponding Rockwell hardness value will be lower. The Rockwell B and C hardness are computed as:

The results from any hardness test can be converted to other hardness scales through best-fit equations to extensive datasets. However, there is no one discrete, linear conversion, and thus the resulting values will be approximations instead of absolute values. For example, for non-work-hardening materials under plane strain:

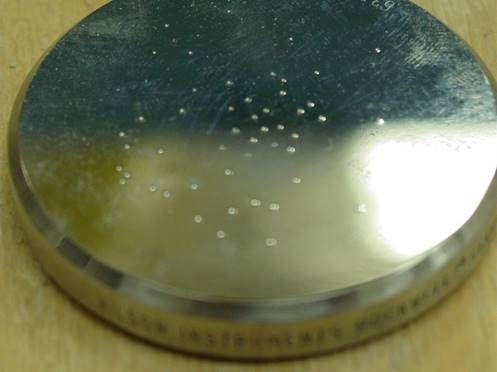

Fig. 2 shows typical indentations on a calibration block, which is generally furnished with the testing machine. These blocks need to be used periodically to ensure that the machine is performing properly.

Figure 2: Indentation on Calibration Block.

In general, the tensile strength of a material (σ_u) can be related to its Brinell hardness (H_B) through equations like:

One of the ways in which the strength of material is changed is through either heat treatment or cold rolling. In general, cold rolling through successively thinner rolls will result in a stronger (and harder material). In a similar fashion, in steels, the rate of cooling significantly affects the formation of martensitic structures, which contribute to improved mechanical performance. Martensitic structures exhibit the distinct crystal structure of body-centered tetragonal (BCT), where the crystals are stretched to be square on both ends but longer on the sides, like a lens, thereby imparting great hardness to the material.

One way of characterizing heat treatment is through a Jominy end-quench test (ASTM A225). In this test a circular specimen, 4 in. long is heated uniformly in an oven. Once it has reached the desired temperature such that full austenizing has been reached (>900 °C), the specimen is cooled with a water jet at one end. Austenization is the process by which steel is heated to change the crystal structure from ferrite to austenite, a metallic, non-magnetic allotrope of iron known as gamma-phase iron.

The end subjected to the water jet will cool significantly faster than the other end, resulting in different martensitic structures, and hence different hardness, along the length of the specimen. At this point a shallow flat surface is ground along the length of the specimen to allow for hardness testing on a flat surface. The Jominy specimen is useful to demonstrate the Rockwell hardness test, but care must be taken not to confuse the hardness test results with the hardenability of a material that the Jominy end-quench test is supposed to measure. Hardenability is intended to measure how martensitic structure varies across the depth of a piece of material; hardness is one way of characterizing that variation.

In the typical Rockwell C test, a preliminary load is applied to the indenter, and an initial penetration depth is measured. This first step is to establish a zero or reference position, in order to mitigate any effects from variations in the material's surface. Next, the major load is applied to the indenter. Finally, the preload is removed, and the final penetration depth is measured. The difference of this value from the initial preload value is then calculated into a hardness value.

A typical result of Rockwell testing on a Jominy specimen for a HR C test is shown in the video. The hardness decrease appreciably as one moves away from the end subjected to the water jet. The hardness test value can be converted to a tensile strength through charts provided by the testing machine manufacturer. The results show that the steel varies considerably in both hardness and strength as one moves away from the quenched end.

Hardness testing is one of the principal tests to garner important engineering information about a material. Rockwell hardness testing is the preferred method of hardness testing, as it eliminates the need for advanced optical equipment, but instead employs basic laboratory equipment to accurately, inexpensively, and quickly measure the hardness of a material. More importantly, this method is easily translated and reproducible between labs and testing personnel because of its relative simplicity. The procedure requires that after taking an initial reading in preloading conditions, one applies the major load and measure the change in position from the initial value. This value can then be calculated into a hardness value, which can also be transformed and approximated to other hardness scales by a series of equations. The Rockwell hardness test was used to show how the rate of cooling affect the martensitic structure of steels, and how the rate of cooling results in materials with significantly different strengths.

Hardness tests enable us to utilize proper materials that will ensure high quality of performance in their use. Every product that we use in our daily lives has been tested for hardness. Consider the following amusing scenario is just one of many daily examples as to how hardness testing allows us to enjoy materials that are both useful and safe. Imagine the plethora of times hardness testing was used in order for you to throw a backyard barbeque for your family reunion. The metal lawn chairs certainly had to be hardness tested to make sure that the metal was strong enough, so that Aunt Bessie did not go tumbling to the ground when she sat down. The metal grates on the grill also had to be hardness tested over a wide range of temperatures (given that your mother likes her steak well done on high heat) to ensure they would not fracture or give when inevitably you dropped the grilling tongs on the grill. The knives you use to cut the meat are all hardened steel also. Finally, the metal ladder in the pool had to hardness tested in aquatic conditions to make sure that when your younger cousin tried to climb out of the pool, he didn't fall back in when the metal failed. There are a lot of saved hamburgers, brats, and hotdogs, not to mention human lives, thanks to hardness testing.
