Laboratory-scale anaerobic digesters allow scientists to research new ways of optimizing existing applications of anaerobic biotechnology and to evaluate the methane producing potential of various organic wastes. This article introduces a generalized model for the construction, inoculation, operation, and monitoring of a laboratory-scale continuously stirred anaerobic digester.
Anaerobic digestion (AD) is a bioprocess that is commonly used to convert complex organic wastes into a useful biogas with methane as the energy carrier 1-3. Increasingly, AD is being used in industrial, agricultural, and municipal waste(water) treatment applications 4,5. The use of AD technology allows plant operators to reduce waste disposal costs and offset energy utility expenses. In addition to treating organic wastes, energy crops are being converted into the energy carrier methane 6,7. As the application of AD technology broadens for the treatment of new substrates and co-substrate mixtures 8, so does the demand for a reliable testing methodology at the pilot- and laboratory-scale.
Anaerobic digestion systems have a variety of configurations, including the continuously stirred tank reactor (CSTR), plug flow (PF), and anaerobic sequencing batch reactor (ASBR) configurations 9. The CSTR is frequently used in research due to its simplicity in design and operation, but also for its advantages in experimentation. Compared to other configurations, the CSTR provides greater uniformity of system parameters, such as temperature, mixing, chemical concentration, and substrate concentration. Ultimately, when designing a full-scale reactor, the optimum reactor configuration will depend on the character of a given substrate among many other nontechnical considerations. However, all configurations share fundamental design features and operating parameters that render the CSTR appropriate for most preliminary assessments. If researchers and engineers use an influent stream with relatively high concentrations of solids, then lab-scale bioreactor configurations cannot be fed continuously due to plugging problems of lab-scale pumps with solids or settling of solids in tubing. For that scenario with continuous mixing requirements, lab-scale bioreactors are fed periodically and we refer to such configurations as continuously stirred anaerobic digesters (CSADs).
This article presents a general methodology for constructing, inoculating, operating, and monitoring a CSAD system for the purpose of testing the suitability of a given organic substrate for long-term anaerobic digestion. The construction section of this article will cover building the lab-scale reactor system. The inoculation section will explain how to create an anaerobic environment suitable for seeding with an active methanogenic inoculum. The operating section will cover operation, maintenance, and troubleshooting. The monitoring section will introduce testing protocols using standard analyses. The use of these measures is necessary for reliable experimental assessments of substrate suitability for AD. This protocol should provide greater protection against a common mistake made in AD studies, which is to conclude that reactor failure was caused by the substrate in use, when really it was improper user operation 10.
Anaerobic digestion (AD) is a mature technology involving the biologically mediated conversion of complex organic waste substrates into useful biogas with methane as the energy carrier. There are many benefits of anaerobic treatment, including minimal energy and nutrient inputs and reduced biosolids production compared to aerobic treatment 10. In addition, the versatility of the mixed microbial community inherent to these systems renders a wide variety of organic substrates suitable as feedstocks 11,12. Indeed, it is due to these benefits that a growing number of applications for AD are being adopted outside of conventional municipal wastewater treatment, particularly in the industrial, municipal (e.g., food waste), and agricultural sectors 4,7,13. AD experienced its first major proliferation beginning in the 1980s in response to the national energy crisis of the previous decade. As the world faces a growing global energy crisis, coupled with environmental degradation, greater focus is now being placed on biofuel technologies and the waste-to-energy concept in particular. For example, in the U.S., anaerobic digestion can generate 5.5% of the total electrical power needs 8.
This has increased the demand for well-controlled experimental research at the pilot- and laboratory-scale to assess the suitability of new organic waste materials and waste mixtures for anaerobic digestion 14. We intend to provide a generic model for the construction, inoculation, operation, and monitoring of a laboratory-scale anaerobic digester that will be suitable for robust assessments. Anaerobic digesters exist in many different configurations. A few common configurations include the: continuously-stirred tank reactor (CSTR) with continuous influent feeding; continuously stirred anaerobic digester (CSAD) with periodic influent feeding; plug flow (PF), upflow anaerobic sludge blanket (UASB); anaerobic migrating blanket reactor (AMBR); anaerobic baffled reactor (ABR), and anaerobic sequencing batch reactor (ASBR) configurations 9,15. The CSTR and CSAD configuration have been widely adopted for laboratory-scale experiments due to its ease of setup and favorable operating conditions. Because of continuous mixing, the hydraulic retention time (HRT) is equal to the sludge retention time (SRT). The SRT is the important design parameter for ADs. The configuration is also conducive to controlled experiments because of a greater spatial uniformity of parameters, such as chemical species concentrations, temperature, and diffusion rates. It should be noted, however, that the optimal full-scale configuration for an anaerobic digester depends on the particular physical and chemical qualities of the organic substrate among other nontechnical aspects, such as target effluent quality. For example, dilute waste streams with relatively high soluble organic content and little particulates, such as brewery wastewater, typically experience greater energy conversion in an high-rate upflow bioreactor configuration (e.g., UASB) rather than a CSAD configuration. Regardless, there are fundamental operating parameters that are essential to successful digestion and relevant to all configurations, which justify a generic explication of using this configuration.
Indeed, every AD system containing a diverse, open community of anaerobic microbes will serially metabolize the substrate to methane (the final end-product with the lowest available free energy per electron). The metabolic pathways involved in this process constitute an intricate food web loosely categorized into four trophic stages: hydrolysis; acidogenesis; acetogenesis; and methanogenesis. In hydrolysis, complex organic polymers (e.g., carbohydrates, lipids, and proteins) are broken down to their respective monomers (e.g., sugars, long-chain fatty acids, and amino acids) by hydrolyzing, fermentative bacteria. In acidogenesis, these monomers are fermented by acidogenic bacteria to volatile fatty acids (VFAs) and alcohols, which in acetogenesis, are further oxidized to acetate and hydrogen by homoacetogenic and obligatory hydrogen-producing bacteria, respectfully 5. In the final step of methanogenesis, acetate and hydrogen are metabolized to methane by acetoclastic and hydrogenotrophic methanogens. It is important to recognize that the overall AD process, by relying on an interconnected series of metabolisms by different groups of microbes, will depend on the successful function of each member before the system as a whole will perform optimally. The design and construction of an AD bioreactor system should always take into consideration the requirement to completely seal the bioreactor. Small leaks in the top of the bioreactor (separating the headspace) or in the gas-handling system may be difficult to detect, and therefore the system should be pressure tested before use. After ensuring a leak-free setup, failures with anaerobic digester studies often stem from errors during inoculation, culturing, and day-to-day operation. As a result, digesters have a reputation as being intrinsically unstable and prone to unexpected failure. Why is it then that full-scale digesters have been operated under stable conditions for decades 13? Failure is likely to stem from improper handling by the operator, especially during the startup period during which the microbial community must slowly acclimate to the organic waste composition and strength. Therefore, our goal is not only to provide a methodology for constructing an AD system, but to also elucidate the processes of inoculation, operation, and monitoring of these systems.
The first section of the article will explain how to construct the CSTR or CSAD system, while the second section will provide a procedure for digester inoculation with active methanogenic biomass. It is more practical and less time-consuming to inoculate digesters with active methanogenic biomass from the mixed-liquor or effluent of an operating digester that is treating a similar substrate than to attempt to develop a sufficient biomass from an incipient culture. The third section of the article will cover operating considerations, such as feeding substrate, decanting effluent, and troubleshooting various reactor problems. Feeding substrate and decanting effluent for this system will be conducted on a semi-continuous basis (i.e., periodic feeding and decanting while most of the biomass and mixed liquor stays in the bioreactor). The frequency in which the digester is fed/decanted is the prerogative of the operator. In general, feeding/decanting more frequently and at regular intervals will promote greater digester stability and consistency in performance between feeding cycles. The fourth section will introduce a basic monitoring protocol to be used during the experimental period. Several standard analyses, which are outlined in Standard Methods for the Examination of Water and Wastewater 16 (Table 1, 2), will be required for characterization of the substrate and proper system monitoring. In addition to the measured variables, an important aspect of monitoring is to check that the digester system components are functioning properly. Regular maintenance to the digester system will preempt major system problems that could otherwise jeopardize the long-term performance and stability of the digester. For example, a failure of the heating element, leading to a drop in temperature, could cause the accumulation of volatile fatty acids by reducing the metabolic rate of methanogens. This problem would be compounded if the system lacked sufficient alkalinity to maintain the pH above inhibitory levels for methanogens. It is also important to detect and close possible leaks after unexpected drops in biogas production rates. Therefore, duplication within the experimental design by, for example, running two bioreactors side-by-side under the exact operating conditions, is important to detect unexpected performance losses caused by system malfunctions, such as small leaks.
1. Digester Construction
2. Digester Inoculation and Conditioning using an Active Methanogenic Biomass
3. Digester Operation
4. System Monitoring
5. Representative Results
Successful inoculation of the digester is marked by the production of biogas within several days. The methane to carbon dioxide ratio of the biogas will increase during the acclimatization period as more methanogenic biomass is recruited. The slow growth of methanogens compared to acidogens makes long acclimatization periods and gradual operational changes necessary. In Fig. 5, we demonstrate the dynamic response of a digester when a high organic loading rate (OLR) is introduced too early in the start-up phase. In this example, there was insufficient methanogenic biomass to remove (i.e., utilize) the volatile fatty acids (VFAs) evolved from the substrate degradation step, acidogenesis. This led to an accumulation of VFAs, and subsequently, a reduction in the pH. To rectify this situation, the OLR was reduced to limit the production of VFAs by acidogens and to allow greater methanogen recruitment before returning to the higher OLR. The digesters then exhibited stable digestion for three hydraulic retention periods.
Stable digestion or pseudo-steady-state conditions can be assumed when the measured parameters, such as the biogas production rates, total VFA concentrations, volatile solids concentrations, and pH levels, are consistently maintained within 10% of their average values, for a minimum time period of one HRT. The significance of this allotment is revealed in Fig. 6, which shows the prolonged response of the CSTR system to a perturbation caused by insufficient mixing. The lack of proper mixing allowed the solids to settle in the reactor, which meant fewer solids were removed during effluent decanting. Their accumulation resulted in higher effluent solids concentrations after sufficient mixing was restored. It took approximately one HRT (i.e., 25 days) to return the digester to a normal effluent solids concentration.
An anaerobic digester is a biological system; thus it will exhibit some internal variability in performance. This variability must be quantified before the experimenter can discern the specific effects caused by experimental perturbations imposed on the system (the proper use of statistics is required). Three HRT periods are required before an experimental change is made to the reactor system because this is generally considered an adequate period of time to assume stable concentrations of chemical species in the mixed liquor (Fig. 7). By the end of this interval, the experimenter should be able to construct a reliable baseline for each measured parameter. This baseline serves as a basis of comparison for future experimentation.
The general performance of the digester can be assessed by following the monitoring protocol, which requires that various standard analyses be executed routinely. This schedule provides adequate temporal resolution to identify precursors to most system problems and the lee time to prevent them. Furthermore, the results of these diagnostic tests are meant to be used in conjunction with Table 1 to identify suboptimum performance. Table 3 provides solutions to many of the problems typically encountered when setting-up a digester. In the event that a problem cannot be rectified by following the instructions outlined therein, the operator should consult other resources, such as a reference text pertaining to anaerobic biotechnology.
Operation Parameters | Standard Methods Index | Typical Range | Extreme Range | ||
Mesophilic | Thermophilic | Mesophilic | Thermophilic | ||
Temperature | 2550(A) | 32-37 17 °C | 50-60 17 °C | 20-42 17 °C | 45-65 17 °C |
Organic Loading Rate | NL | 0.8-2.0 17 g VS-L-1-d-1 | 1.5-5.0 17 g VS-L-1-d-1 | 0.4-6.4 17 g VS-L-1-d-1 | 1.0-7.5 17 g VS-L-1-d-1 |
Hydraulic Retention Time | NL | 15 - 35 Days | < 15 ; > 35 Days | ||
Carbon: Nitrogen Ratio | NL | 25:1 17 | > 25:1 | ||
Monitoring Parameters | Standard Methods Index | Optimum Range | Suboptimum Range | ||
pH | 4500-H+(B) | 6.5 - 8.2 10 | < 6.5 ; > 8.2 | ||
Alkalinity | 2320(B) | 1300 - 3000 17 mg CaCO3-L-1 | < 1300 mg CaCO3-L-1 | ||
Volatile Acids | 5560(C) | < 200 10 mg Ac-L-1 | > 200 10 mg Ac-L-1 | ||
Solids Removal Efficiency | 2540(B,E) | > 50 % | < 50 % | ||
Biogas Content | 2720(C) | 55-70 CH4; 30-45 CO2 % | < 55 CH4; > 45 CO2 % |
Table 1. General operation selection guide and monitoring parameters for CSTR systems.
Component | Specifications (Design Considerations) | Comments |
Temperature-Controlled Circulating Water Heater | Temperature Range: 25-65 °C (Heating Capacity, Max. Pressure Head, Volumetric Flow Rate) | Heated water must be supplied at a sufficiently high flow rate and with sufficient pressure to fully circulate. |
Sampling Port | NA | Located close to headspace is ideal. |
Foam Trap | Volume: 25% of Reactor Volume | Simple side-arm flask or glass jars can be used. The unit should be accessible for cleaning. |
Hydrogen Sulfide Scrubber | (Gas Contact Time) | Glass or plastic tubes should be used (not metal). Sizing length should provide adequate gas contact time. |
Gas Reservoir | Volume: > 2x Effluent Volume; Material: Semi-Elastic (not Rigid) | The volume should exceed that taken during effluent decanting. The material should allow for shrinking and expansion. |
Bubbler | NA | The head pressure provided by the water level should be minimized to limit pressure build-up in the gas delivery system. |
Gas Meter | (Gas Flow Detection Range) | Plastic gas meters are preferred over metal. The gas flow detection range should be accurate at expected biogas production rates. |
Table 2. Auxiliary reactor components with specifications and comments.
ERROR SYMPTOM | POSSIBLE SOLUTIONS |
Frequent clogging of feeding or effluent tubes | • Use larger diameter tubing and/or fittings. • Reduce particle substrate size (e.g., using a blender or sieve). • Mix feed more frequently while feeding. • Ensure that digester contents are fully mixed. |
Excessive foaming |
• Reduce the OLR • Reduce the mixing intensity in the digester. • Increase the headspace in the digester by reducing the active digester volume. |
Inconsistent biogas yield between digester replicates |
• Verify that no leaks are present in the gas handling system of either digester. • Check that the gas meter and heating element are functioning properly and are calibrated. • Verify that the feed mixtures are prepared equivalently. |
Inconsistent or highly variable solids concentration in the effluent between digester replicates (Fig. 6) |
• Verify that the digester contents are adequately mixed. • Ensure that the reactor effluent decanting line is equivalent between reactors. |
Reduced methane content in biogas |
• Verify that the pH is within the optimal range for methanogenesis (i.e., 6.5 to 8.2). If not, supplement with acidity or alkalinity as appropriate. • If significant nitrogen is detected in the biogas (i.e., >10%), check for leaks near the sampling port. • Regularize the periodicity of biogas sampling. • Verify that the VFA concentration is within the optimal range. If not, follow troubleshooting steps listed for chronically high volatile fatty acid concentrations. |
Chronically high volatile fatty acid concentration (Fig. 5) |
• Reduce the OLR. • Overcome nutrient or trace metal deficiencies by supplementation. • Verify that the reactor contents are sealed from oxygen intrusion. • Increase feed cycle frequency. • Eliminate hydraulic short circuiting. • Overcome alkalinity deficiency by supplementation. |
Table 3. Troubleshooting protocol for digester operation.
Figure 1. Basic example of reactor design: Body material- Glass; Tubing material- Stainless Steel/Aluminum; Lid material- PVC/Plexiglas.
Figure 2. Basic example of reactor lid design: Lid material- PVC/Plexiglas; Fittings material- Stainless Steel/Plastic; Tubing material- Stainless Steel/Aluminum.
Figure 3. System diagram showing component arrangement.
Figure 4. Basic example of foam trap design: Jar material- Plastic/Glass; Tube material- Plastic/Glass.
Figure 5. Typical system response to a high organic loading rate (OLR) during reactor start-up. Beginning with an OLR of 1.35 gVS-L-1 caused the accumulation of total volatile fatty acids (TVFA). The acid accumulation caused a decrease in pH followed by a reduction in biogas yield. By lowering the OLR to 1.15 g VS-day-1, both systems were able to recover and establish a sufficient methanogenic biomass concentration to tolerate a 1.35 gVS-L-1 OLR. The difference in pH and TVFA accumulation between reactors exhibits the unique dynamics of mixed communities.
Figure 6. Typical system response to insufficient mixing (Reactor A) compared to a sufficiently mixed system (Reactor B). During poor mixing, the solids settle to the bottom of the reactor and are not removed during decanting (days 280 - 290). When mixing is returned to sufficient intensity (day 300), the accumulated solids are gradually removed (days 305 - 330), and the system returns to stable solids concentrations.

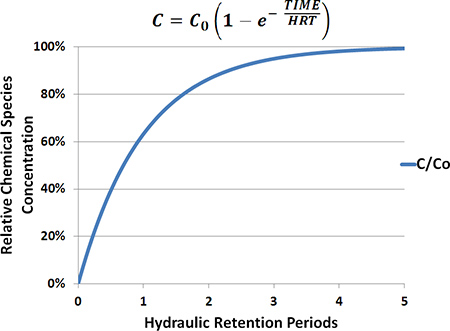

Figure 7. Theoretical relationship between the concentration of a conservative chemical species and the hydraulic retention period (HRT) in an ideal CSTR system. At three HRTs the actual concentration of a chemical species [C] in the digester is 95% that of the initial concentration present in the feed [C0].
The anaerobic digestion system presented in this article provides a general introduction and some basic guidelines for the treatment of most substrates in an experimental context. The wide variety of substrate types, digester configurations, operating parameters, and also the unique ecology of the mixed-microbial community underlying these systems precludes outlining hard quantitative metrics, which can be applied universally. Despite all this variability, all anaerobic digestion systems follow a well-characterized series of biological degradation pathways, which are mediated by physical and chemical processes whose principles are well understood and can be applied to all systems. It is from these fundamental principles, along with well-documented operating observations reported in the literature, that we report these optimum ranges for system parameters and proper system operation methodologies. The cited parameters are interrelated and play important roles in the anaerobic digestion process. A thorough understanding of these interrelationships greatly improves the operator's capacity to recognize and remedy system problems. The text, "Anaerobic Biotechnology: for Industrial Wastewaters" by Speece provides a fairly comprehensive catalog of pertinent operating and monitoring topics in anaerobic digestion for those seeking further insight and explanation10.
No conflicts of interest declared.
This research is supported is supported by the USDA through the National Institutes of Food and Agriculture (NIFA), grant number 2007-35504-05381; by grant no. 58872 from NYSERDA and NYC-123444 through the Cornell University Agricultural Experiment Station's federal formula funds from the USDA NIFA.
Name | Company | Catalog Number | Comments |
Reactor Equipment | Company | Catalogue number | Comments |
Heated Recirculator | VWR Scientific | 13271-063 VWR | For use with a heating jacket reactor system |
Variable Speed Electric Lab Stirrer | Cleveland Mixer Co. | (Model 5VB) | This mixer model facilitates mounting with a ring stand |
Wet-Type Precision Gas Meter | Ritter Gasmeters | (Model TG-01) | This model needs a minimum flow of (0.1 L/h) and can handle a maximum flow of 30 L/h |
Gas Bubbler | Chemglass | (Model AF-0513-20) | |
Gas Sampling Tube | Chemglass | (Model CG-1808) | |
Axial Impeller | Lightnin' | R04560-25 Cole-Parmer | Impeller blades with 7.9375 mm bore diameter |
Impeller Shaft | Grainger | 2EXC9 Grainger | 1.83 m stainless steel rod with 7.9375 mm O.D. (needs to be cut to appropriate size) |
Cast Iron Support Stands | American Educational Products | (Model 7-G16) | For mixer mounting |
Three-Prong Extension Clamp | Talon | 21572-803 VWR | For mixer mounting |
Regular Clamp Holder | Talon | 21572-501 VWR | For mixer mounting |
Peristaltic Pump | Masterflex | WU-07523-80 Cole-Parmer | For effluent decanting |
L/S Standard Pump Head | Masterflex | EW-07018-21 Cole-Parmer | For effluent decanting -accessory to peristaltic pump |
L/S Precision Pump Tubing | Masterflex | EW-06508-18 Cole-Parmer | For effluent decanting - accessory to peristaltic pump |
Analysis Equipment/Reagents | Company | Catalogue number | Comments |
pH Analysis | |||
pH Meter | Thermo Fisher Scientific - Orion | 1212000 | |
Total and Volatile Solids Analysis (Standard Methods: 2540-B,E) | |||
Glass Vacuum Dessicator | Kimax | WU-06536-30 Cole-Parmer | |
Porcelain Evaporating Dishes | VWR | 89038-082 VWR | |
Lab Oven | Thermo Fisher Scientific | (Model 13-246-516GAQ) | |
Medium Chamber Muffle Furnace | Barnstead/ Thermolyne | F6010 Thermo Scientific | |
Total Volatile Fatty Acid Analysis (Standard Methods: 5560-C) | |||
Large Capacity Variable Speed Centrifuge | Sigma | WU-17451-00 Cole-Parmer | |
Laboratory Hot Plate | Thermo Scientific | (Model HP53013A) | |
Large Condenser | Kemtech America | (Model C150190) | |
Acetic Acid Reagent [CAS: 64-19-7] | Alfa Aesar | AA33252-AK | |
Chemical Oxygen Demand (Standard Methods: 5520-C) | |||
COD Block Heater | HACH | (Model DRB-200) | |
Borosilicate Culture Tubes | Pyrex | (Model 9825-13) | |
Potassium Dichromate Reagent [CAS: 7778-50-9] | Avantor Performance Materials | 3090-01 | |
Mercury II Sulfate Reagent [CAS: 7783-35-9] | Avantor Performance Materials | 2640-04 | |
Ferroin Indicator Solution [CAS: 14634-91-4] | Ricca Chemical | R3140000-120C | |
Ammonium iron(II) sulfate hexahydrate [CAS: 7783-85-9] | Alfa Aesar | 13448-36 | |
Gas Composition by Gas Chromatography Analysis | |||
Gas Chromatograph | SRI Instruments | Model 8610C | Must be equipped with a thermal conductibility detector (TCD), using below mentioned column and carrier gas operated at an isothermal temperature of 105°C |
Helium Gas | Airgas | He HP300 | To be used as the carrier gas |
Packed-Column | Restek | 80484-800 | To be used for N2, CH4, and CO2 separation |
