All procedures involving sample collection have been performed in accordance with the institute&#39;s IRB guidelines.
1. Basic information of the study group
NOTE: The Allergy Information Repository of the State Key Laboratory of Respiratory Disease (AIR-SKLRD) is a large serum bank established inside the Guangzhou Institute of Respiratory Hospital (GIRH). Initiated in the last decade, the AIR-SKLRD has already started collecting and storing serum samples from patients with allergic diseases and their clinical information (Table 1). The current study was performed with sera from the AIR-SKLRD.
<ol>
	<li>Search the AIR-SKLRD&#39;s database for sera collected from January 2015 to June 2018 and select the patients with allergic disease who were found to be sensitive to the common allergens in the region.</li>
	<li>Ensure that all selected patients have allergic-related diseases, such as allergic rhinitis and or asthma, allergic dermatitis, and/or urticaria, and that the serum of these patients contains multiple serum allergen-specific immunoglobulin E (sIgE) sensitizations of common allergens in this region, detected by the System 1.</li>
	<li>Exclude patients with incomplete medical records, those lost to follow-up, those who refuse to give informed consent regarding the use of their serum samples for scientific purposes, those with an identified immunodeficiency, those currently on immunotherapy or immunomodulatory agents, or those found to have parasitic infections.</li>
	<li>Ensure no treatment or drug prescription was given before the serum collection to minimize interference with the laboratory findings. All serum samples that did not fulfill the criteria were rejected.</li>
</ol>
2. Study flow and measurements of interest
NOTE: The microfluidic system needs 100 &#181;L of serum to determine 19 allergens. Venous blood (5 mL) was collected from each patient using a vacuum blood vessel containing separating gel. After centrifuging for 10 min at 1,000 x&#160;g, the upper layer was collected for testing. Unused serum was stored at -80 &#176;C. Before testing, the serum was kept at room temperature for 30 minutes and shaken with a vortex mixer. Repeated freeze-and-thaw cycles were avoided.
<ol>
	<li>Primarily test the serum samples for sIgEs to whole allergens of&#160;Dermatophagoides pteronyssinus&#160;(d1),&#160;Dermatophagoides farinae&#160;(d2),&#160;Blomia tropicalis&#160;(d201), cat dander (e1), dog dander (e5), Bermuda grass (g2), timothy grass (g6), cockroaches (i6),&#160;Aspergillus fumigatus&#160;(m3),&#160;Candida albicans&#160;(m5), ragweed (w1), egg white (f1), milk (f2), wheat (f4), peanut (f13), soybean (f14), almond (f20), crab (f23), and shrimp (f24). Follow the instructions given in section 3.
	NOTE: sIgE determination was done with the allergen-specific IgE assay kit (see the&#160;Table of Materials) and measured by a chemiluminescence analyzer.</li>
	<li>Randomly select three samples from among the samples with enough serum (at least 900 &#181;L) for a reproducibility study. Keeping all the conditions unchanged, measure the three sera for allergen sIgEs daily for 9 consecutive days (i.e., 100 x 9 = 900 &#181;L of serum).</li>
</ol>
3. Semi-automation test procedure of the microfluidic system
NOTE: System 2 integrates automatic microfluidic technology, protein microarray, cold light analysis, parallel IgE analysis, and image processing technology. The testing protocol is divided into four parts: preparation of the equipment, sample loading, incubation, and measurement.
<ol>
	<li>Preparation of the equipment
	<ol>
		<li>Turn on the PC and the analyzer power.
		NOTE: The power switch is on the left of the base.</li>
		<li>Start the LabIT program on the PC. If the&#160;Dark Frame&#160;warning window pops up, click&#160;OK&#160;to run&#160;the LEAK Test. Afterward, click the center logo to enter the operation interface.
		NOTE: The system will remind the user to run&#160;the LEAK Test&#160;if idle for more than 24 hours.</li>
		<li>Check the Reaction Temp and CCD (charge-coupled device) Temp at the lower right corner of the screen. The Reaction Temp should rise to 37 &#176;C &#177; 1 &#176;C in about 10 min, and the CCD Temp should drop to -15 &#176;C &#177; 1 &#176;C.</li>
		<li>Run the&#160;LEAK Test&#160;after the CCD Temp has dropped to -15 &#176;C &#177; 1 &#176;C. Before running the LEAK test, make sure no other items are left inside the instrument and close the door. Click&#160;Tools&#160;|&#160;System Test&#160;|&#160;LEAK Test. Do not open the door during testing. When the test is finished, the report window will pop up.</li>
	</ol>
	</li>
	<li>Sample loading
	<ol>

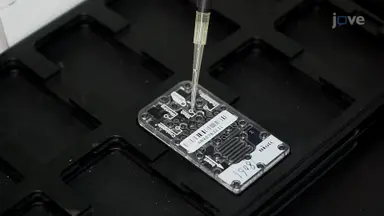

		<li>Add 620 &#181;L of wash buffer, 120 &#181;L of blocking buffer, 60 &#181;L of conjugates A and B, 60 &#181;L of substrate A and B, and 100 &#181;L of serum samples to the corresponding reagent tank on the microfluidic cartridge.</li>
	</ol>
	</li>
	<li>Incubation
	<ol>
		<li>Click on&#160;Cartridge ID, use the barcode scanner to scan the serial number of the cartridge, enter the sample ID, put the cartridge into the analyzer, close the door, and click&#160;Analyzer&#160;and&#160;Run&#160;to start the analysis.</li>
	</ol>
	</li>
	<li>Measurement
	<ol>
		<li>Export the results to statistical software (e.g., Excel) after the measurement.
		NOTE: After 30 min of incubation, the analyzer automatically performs the measurement and reports the result.</li>
	</ol>
	</li>
</ol>
Table 1: Patient demographic characteristics.&#160;In total, 293 subjects who fulfilled the inclusion criteria were found, with a median&#160;age of 23 (interquartile range from 8 to 36 years old). Among them, 170 (58.02%) were male and 123 (41.98%) were female. Also, 92 (31.40%) of them had allergic rhinitis, 117 (39.93%) had allergic asthma, 36 (12.29%) had comorbidity of rhinitis and asthma, and 48 (16.38%) had other allergic diseases, such as a food allergy or skin allergies.
<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td>Characteristic</td>
			<td>No.(%)</td>
		</tr>
		<tr>
			<td>Gender, n(%)</td>
			<td></td>
		</tr>
		<tr>
			<td>Female</td>
			<td>123(41.98%)</td>
		</tr>
		<tr>
			<td>Male</td>
			<td>170(58.02%)</td>
		</tr>
		<tr>
			<td>Age, year, n(%)</td>
			<td></td>
		</tr>
		<tr>
			<td>Median (25%,75%)</td>
			<td>23(8,36)</td>
		</tr>
		<tr>
			<td>&#8804;10</td>
			<td>97(33.11%)</td>
		</tr>
		<tr>
			<td>11-20</td>
			<td>37(12.63%)</td>
		</tr>
		<tr>
			<td>21-40</td>
			<td>101(34.47%)</td>
		</tr>
		<tr>
			<td>&#62;41</td>
			<td>58(19.80%)</td>
		</tr>
		<tr>
			<td>Diagnosis, n(%)</td>
			<td></td>
		</tr>
		<tr>
			<td>Allergic rhinitis</td>
			<td>92(31.40%)</td>
		</tr>
		<tr>
			<td>Allergic asthma</td>
			<td>117(39.93%)</td>
		</tr>
		<tr>
			<td>Allergic rhinitis with asthma</td>
			<td>36(12.29%)</td>
		</tr>
		<tr>
			<td>Others</td>
			<td>48(16.38%)</td>
		</tr>
	</tbody>
</table>

<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td>Agnitio BioIC Analyzer</td>
			<td>Agnitio Science &#38; Technology(Taiwan, China)</td>
			<td>BA-G2000</td>
			<td></td>
		</tr>
		<tr>
			<td>BioIC Allergen specific-IgE Detection Kit</td>
			<td>Agnitio Science &#38; Technology(Taiwan, China)</td>
			<td>DR17A12</td>
			<td></td>
		</tr>
		<tr>
			<td>BioIC Cartrideg Placement plate</td>
			<td>Agnitio Science &#38; Technology(Taiwan, China)</td>
			<td>T20SET</td>
			<td></td>
		</tr>
		<tr>
			<td>BioIC Reagent Dispenser</td>
			<td>Agnitio Science &#38; Technology(Taiwan, China)</td>
			<td>DS-1</td>
			<td></td>
		</tr>
		<tr>
			<td>Image two-dimensional barcode machine</td>
			<td>Agnitio Science &#38; Technology(Taiwan, China)</td>
			<td>NLS-HR200</td>
			<td></td>
		</tr>
		<tr>
			<td>VORTEX-5 Vortex Mixer</td>
			<td>Haimen Kylinbell Lab Lastruments Co., Ltd.</td>
			<td>VORTEX-5</td>
			<td></td>
		</tr>
	</tbody>
</table>

a microfluidic cartridge-based detection system for allergen-specific immunoglobulin e

Source: Huang, Z., et al. <a href="https://app-jove-com.remotexs.ntu.edu.sg/v/59100">Application of Biochip Microfluidic Technology to Detect Serum Allergen-specific Immunoglobulin E (sIgE).</a>&#160;J. Vis. Exp.&#160;(2019)
This video demonstrates a protocol for detecting serum-specific immunoglobulin E using a microfluidic cartridge-based chemiluminescence system. Serum IgEs interact with distinct allergens immobilized in the reaction zone of the cartridge, which are subsequently detected with peroxidase-conjugated anti-IgE antibodies and a chemiluminescent substrate, allowing simultaneous detection of multiple allergen-specific IgEs.

A Microfluidic Cartridge-Based Detection System for Allergen-Specific Immunoglobulin E

All procedures involving sample collection have been performed in accordance with the institute&#39;s IRB guidelines.
1. Basic information of the study ...

Begin with a microfluidic cartridge equipped with storage tanks and unidirectional pumps that deliver reagents through channels into a reaction zone.
The reaction zone contains multiple spots immobilized with distinct allergens.
Load wash buffer, blocking buffer, peroxidase-conjugated secondary antibodies, and a chemiluminescent peroxidase substrate into the designated tanks.
Add a serum sample containing allergen-specific immunoglobulin E or IgE.
Initiate the analysis inside a chemiluminescence analyzer.
Within the reaction zone, the blocking buffer flows and blocks non-specific interaction sites.
The introduction of serum allows the IgEs to interact with the immobilized allergens.
Washing eliminates unbound IgEs.
Next, peroxidase-conjugated secondary antibodies flow in and interact with the immobilized IgEs.
Subsequent washing removes unbound antibodies.
The analyzer then introduces the chemiluminescent substrate and hydrogen&#160; peroxide .
The peroxidase oxidizes the substrate, emitting luminescence .
The luminescence intensity in each spot provides a quantifiable indication of distinct allergen-specific IgEs in the serum.
